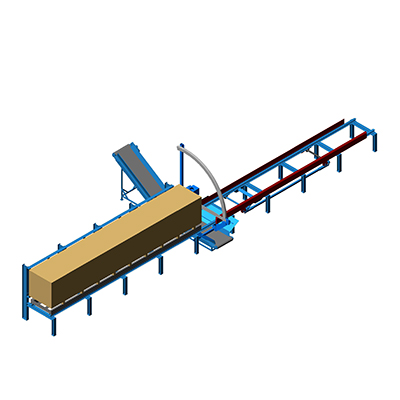

The CROSSCUT complements the range of PRINZ crosscut saws with arch guide frame. In this model, the saw is fixed to the loading frame and a travelling carriage positions the stacks. Available with manual cut function and PLC control. Many options are available: kerf opening, strapping systems and much more.
| Power: | 11 kW |
| Motor/Engine: | electric |
| Cutting accuracy: | +/- 0.08″ (±2mm) |
| Standard package size (width x height): | 47″ x 47″ (120 x 120 cm) |
| Larger dimensions available: | yes |
| Cut feed: | gear motor |
| Guiding of the cut: | with arch |
| Saw type: | stationary saw/package with carriage moves |
| Chain types: | scraper chain/ carbide tipped chain |
| Guide bar: | solid steel, special hard faced edge |
| Package/saw drive: | gear motor with frequency converter |
| Measuring device available: | yes |
| Control system: | full and half automatic |
| Applications: | automatic production system with +/- 0.08″ (±2mm) cut accuracy |
| Options: | manual or electronic measuring device |
| exhaust connection, laser light for cut position | |
| container for waste removal, package holding down appliance | |
| pivoting cut, serial cut function, package lift |
